Protection Summary report

The Protection Summary report summarizes your appliance's current protection details. The Protection Summary report:

●   Prepares a summary log of all backups and backup copies.

●   Displays the status of those backups and backup copies.

●   Lists all protected and unprotected assets.

After generating a report, the Protection Summary report displays both a graphical and tabular view of protected and unprotected assets within a selected date range.

When finished, click Report Categories in the upper left to return to the Available Reports page.

NOTES

●   The report includes backups that are currently stored on the selected appliance(s). Once a backup has been removed, it is not included in reports.

●   The number of protected and unprotected assets does not include Unitrends appliances.

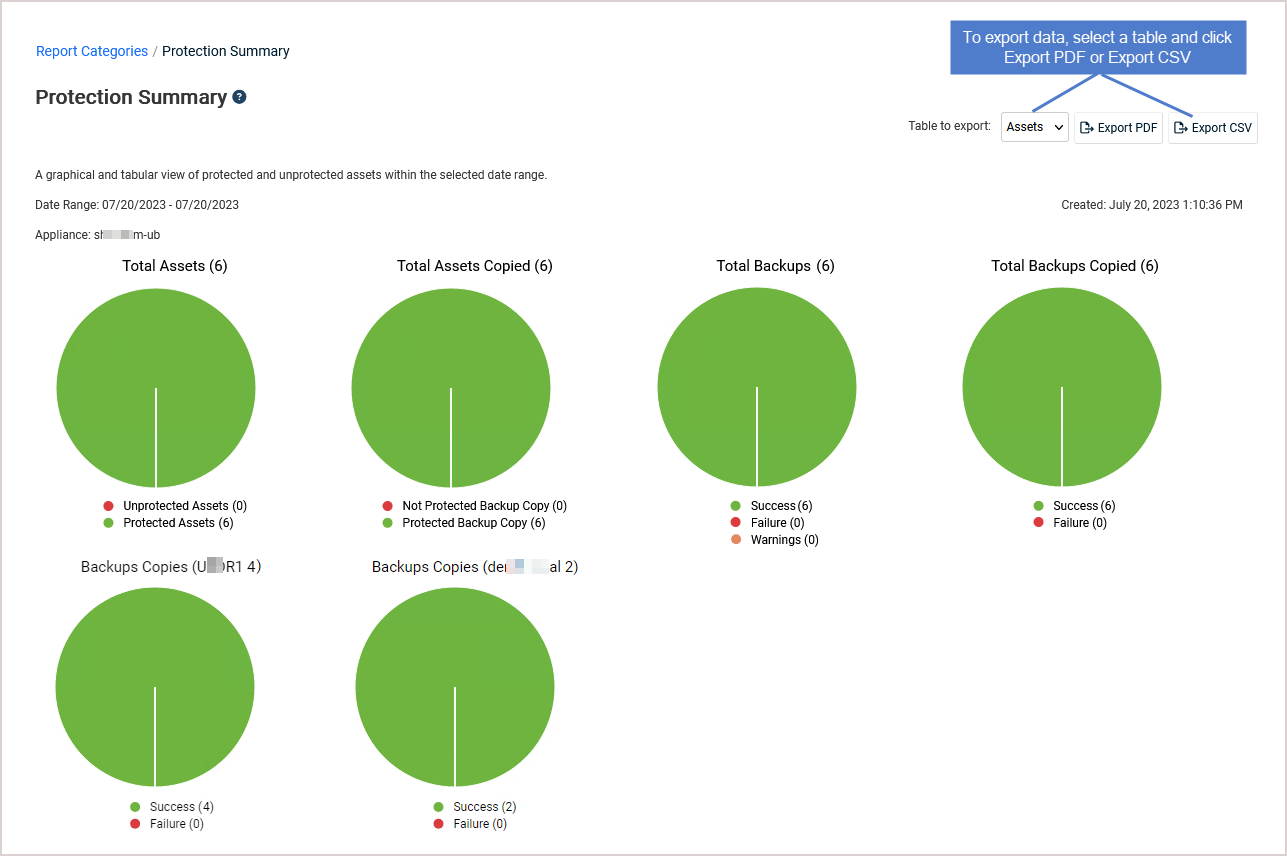

An example report is given here. Refer to the table below for a description of the charts and available report columns. Not all columns display by default. To customize your output, click the icon to the right of the column header.

Item

Description

Protection Summary Pie Charts

Graphical view of protected and unprotected assets within the selected date range.

Total Assets

The total number of assets configured on the selected appliance(s). A pie chart shows the number of protected assets versus unprotected assets. Asset count does not include Unitrends appliances.

Total Assets Copied

The total number of assets and a pie chart that shows the number of assets protected by backup copies versus the number not protected by backup copies. Asset count does not include Unitrends appliances.

Total Backups

The total number of backups currently stored on the selected appliance(s) that ran within the specified date range. A pie chart shows the number of successful backups, the number of backups that completed with warnings, and the number of backups that failed.

Total Backups Copied

The total number of backups copies that ran within the specified date range. A pie chart shows the number of successful backups copies and the number of failed backup copies.

Backup Copies (Target)

Shows number of successful and failed backup copies by target.

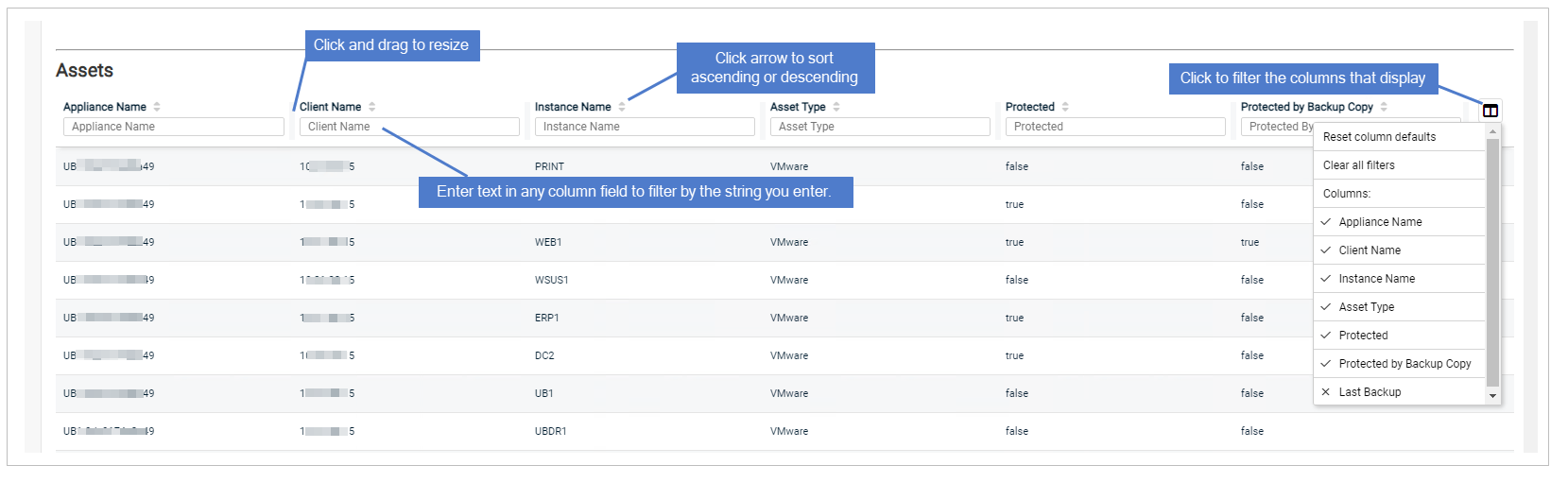

Assets Table Column

Lists all assets configured on the selected appliance(s), regardless of whether backups or backup copies have run within the selected date range. See the Last Backup and Protected By Backup Copy columns to determine whether the asset has been protected within the specified date range.

Appliance Name

The name of the backup appliance.

Client Name

The name of the asset.

Instance Name

The name of the protected instance. Examples:

●   Agent-based asset - Contains image-level or is empty for file-level.

●   Virtual machine - Contains the VM name.

●   Database - Contains the database name.

●   Storage group - Contains the storage group name.

Asset Type

The type of protected asset. Examples: SQL Server, Windows 2012, Linux, Oracle, Hyper-V, or VMware.

Protected

Indicates whether there is a successful backup of this asset that ran within the specified date range: True (yes) or False (no).

Protected by Backup Copy

Indicates whether a successful backup copy ran for the asset within the specified date range: True (yes) or False (no).

Last Backup

Start date and time of this asset's last successful backup that ran within the specified date range.

Backup Table Column

Lists all assets that have been protected by backups within the selected date range and provides summary backup information.

Appliance Name

The name of the backup appliance.

Client Name

The name of the asset.

Instance Name

The name of the protected instance. Examples:

●   Agent-based asset - Contains image-level or is empty for file-level.

●   Virtual machine - Contains the VM name.

●   Database - Contains the database name.

●   Storage group - Contains the storage group name.

Asset Type

The type of protected asset. Examples: SQL Server, Windows 2012, Linux, Oracle, Hyper-V, or VMware.

Backup Types

Backup modes of this asset's backups that ran within the specified date range and are stored on the appliance. Full, Incremental, Differential, Synthetic Full, Selective, Bare Metal, and/or Transaction (SQL only).

Successes

The number of backup jobs that completed successfully within the specified date range.

Warnings

The number of backup jobs that completed with warnings within the specified date range.

Failures

The number of backup jobs that failed within the specified date range.

Last Backup

Start date and time of this asset's last successful backup that ran within the specified date range.

Next Backup

Date and time that this asset's next scheduled backup will run.

Next Backup Job

Name of the next backup job that will run for this asset.

Backup Copies to Target Table Column

Lists all assets that have been protected by backup copies on the given target, within the selected date range. The table provides summary information about these backup copies.

Appliance Name

The name of the backup appliance.

Client Name

The name of the asset.

Instance Name

The name of the protected instance. Examples:

●   Agent-based asset - Contains image-level or is empty for file-level.

●   Virtual machine - Contains the VM name.

●   Database - Contains the database name.

●   Storage group - Contains the storage group name.

Asset Type

The type of protected asset. Examples: SQL Server, Windows 2012, Linux, Oracle, Hyper-V, or VMware.

Backup Copy Types

Backup modes of this asset's backups that were copied to the target within the specified date range. Full, Incremental, Differential, Synthetic Full, Selective, Bare Metal, and/or Transaction (SQL only).

Backup Copy Successes

The number of backup copy jobs that completed successfully within the specified date range.

Backup Copy Warnings

The number of backup copy jobs that completed with warnings within the specified date range.

Backup Copy Failures

The number of backup copy jobs that failed within the specified date range.

Last Backup Copy

Start date and time of this asset's last successful backup copy that ran within the specified date range.
